MASTER CubeSat OBC
Modular and expandable On-Board Computer
MASTER is 2NDSpace’s high-performance On-Board Computer for CubeSat missions from 1U to 16U, providing reliable platform control and in-orbit data handling. It is based on a dual-core processing architecture with integrated memory and data storage, multiple communication interfaces, OTA (Over-The-Air) update support, and FreeRTOS compatibility.
MASTER can be expanded with multiple add-on modules for payload data handling and platform subsystem controls.
Reliability
Integration
Customization

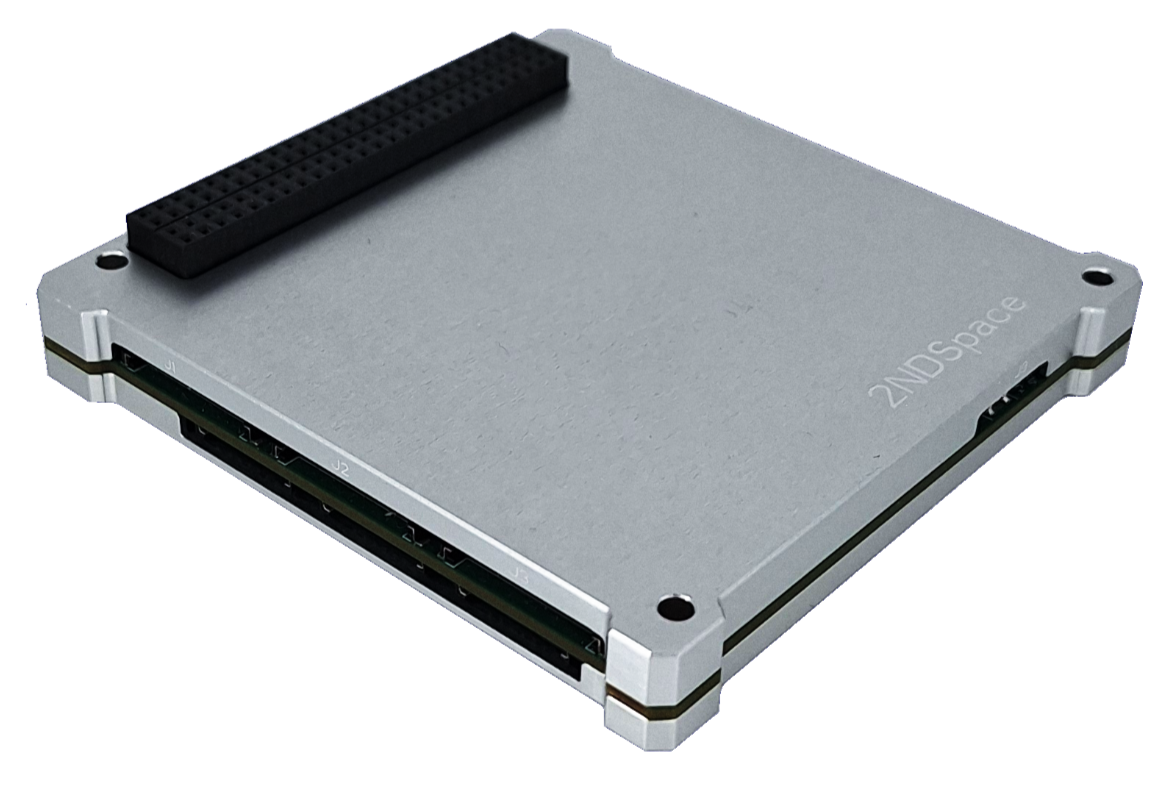

MASTER
CubeSat On-Board Computer
Dual core processor for multi-operation
Cortex M7 480MHz
Cortex M4 240MHz
OTA (Over the air) Update
FreeRTOS compatible architecture
13 Com interfaces: CAN, RS422, RS485, UART, USART, I2C, SPI
8x GPIO / 8x ADC inputs
2x SD storage memory
64 Mb Synchronous DRAM
32-Mbit SPI Serial Flash memory
6 Axis IMU
Temperature Sensor

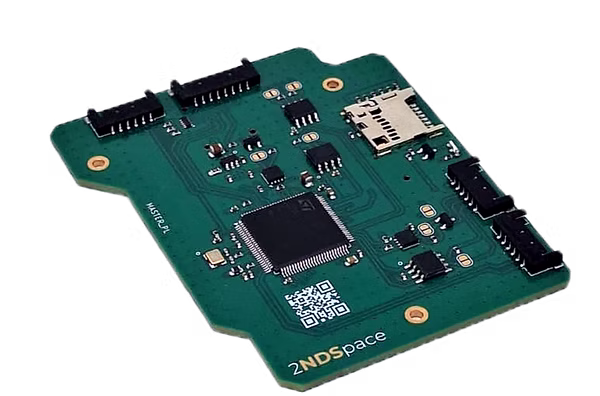

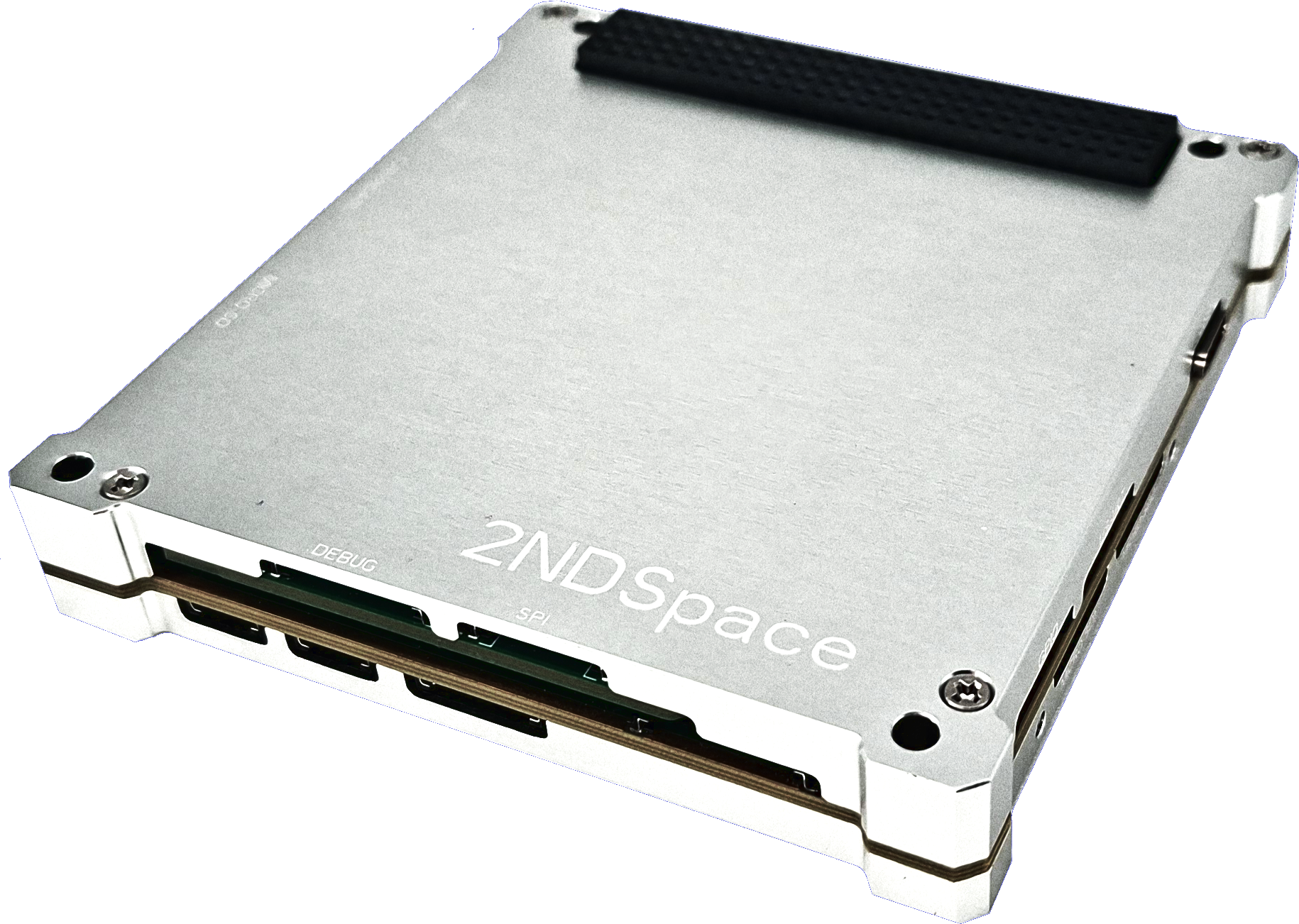

MASTER-CHIEF
Extended On-Board Computer
Direct integration with MASTER OBC
Dual core processor for redundancy and multi-operation
Cortex M7 400MHz
1MB RAM size with ECC
2MB Program memory size
OTA (Over the air) Update
FreeRTOS compatible architecture
High-Speed LVDS Interface >10Mbps
8x: CAN, RS422, RS485, UART, I2C, SPI
1x uSD storage memory (up 64GB)
Temperature Sensor

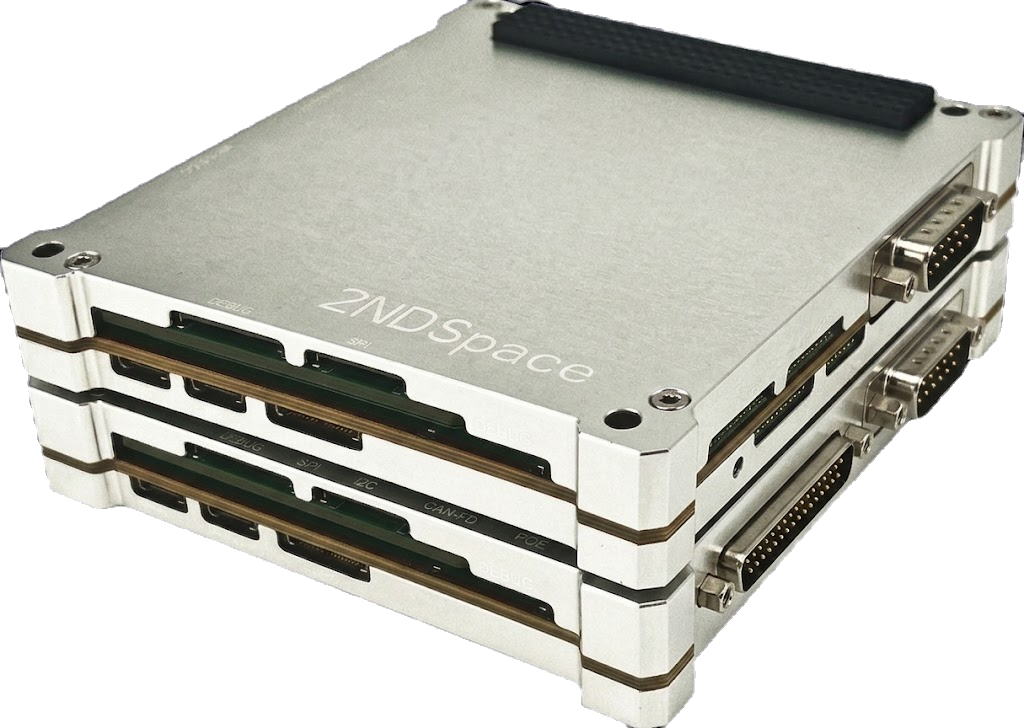

MASTER II
Mission Critical Payload and Platform OBC
Payload-centric OBC for demanding small satellite missions
Dual-section A/B redundant architecture
Independent FPGA Monitor for supervision and recovery
PolarFire SoC with RISC-V processing and FPGA acceleration
Embedded Linux with support for modular mission applications
Container-oriented software architecture for flexible payload integration
Coral Edge TPU for onboard AI inference
BRIDGE interface for mission-specific expansion
Modular, resilient and power-aware by design
