CORE Solar Panels
Body mounted CubeSat solar panels from 1U to 16U
CORE is the CubeSat solar panel series by 2NDSpace, designed to deliver reliable power generation with proven flight heritage. With modular layouts and customizable interfaces, CORE panels integrate seamlessly with CubeSat platforms from 1U to 16U. Their flexibility allows fast adaptation to mission requirements, ensuring efficient performance and robust operation for both CubeSat and nanosatellite missions.
Reliability
Integration
Add-on
Choose your mission form factor
1U
2U
3U
6U
8U

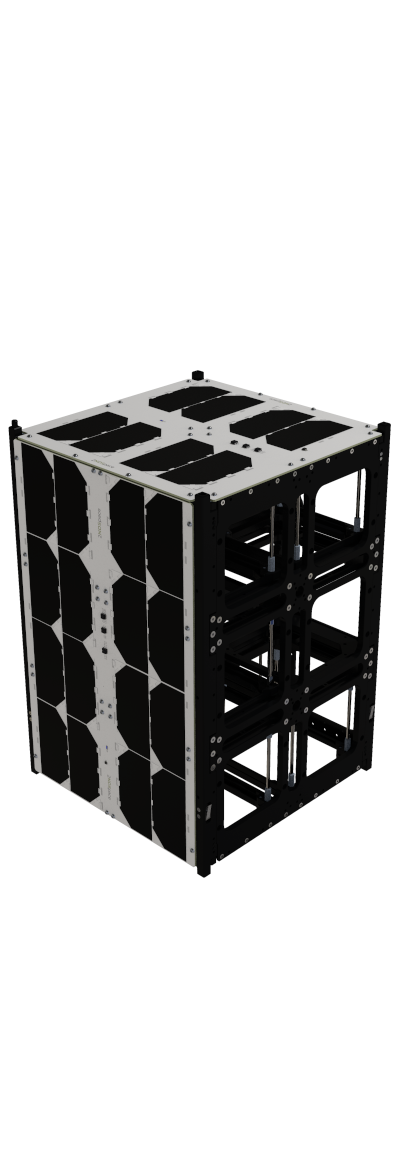

12U
16U

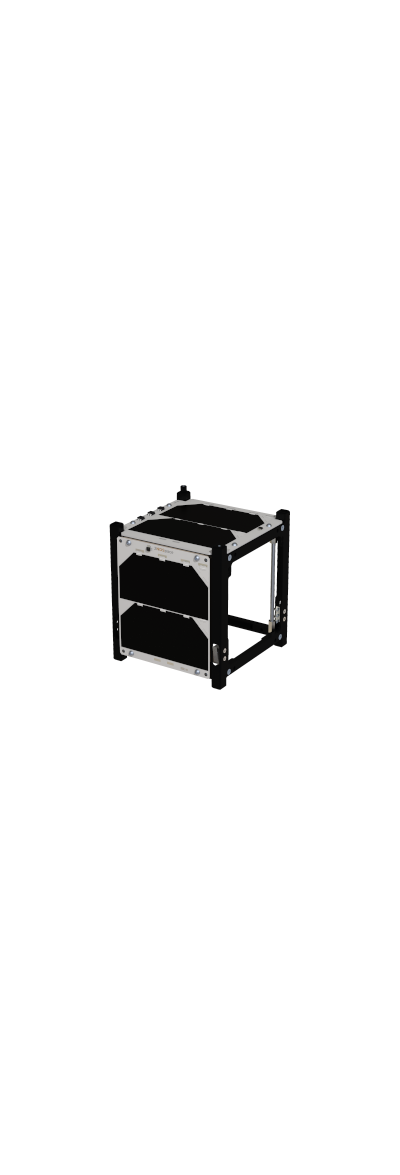

CORE-01
1U Cubesat Solar panel
Peak Power: 2.45 W
OC Voltage options: 5.2 V
Suggested for: 1U
Side: Lateral
Form Factor: 1U Lateral XY
Mass: 38 g
Protection: Dual redundant

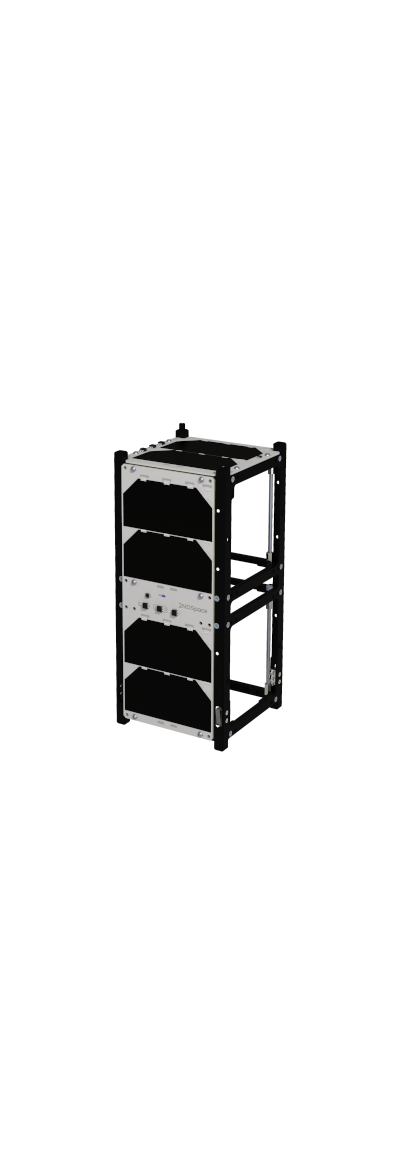

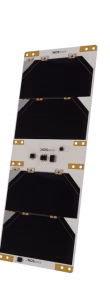

CORE-02
2U Cubesat Solar panel
- Form factor 1U
- Mass 90 g
- Maximized ease of integration and access
- Enhanced structural performances
- Single or multiple stacks PC104 Compatible
- User-definable end frame layout

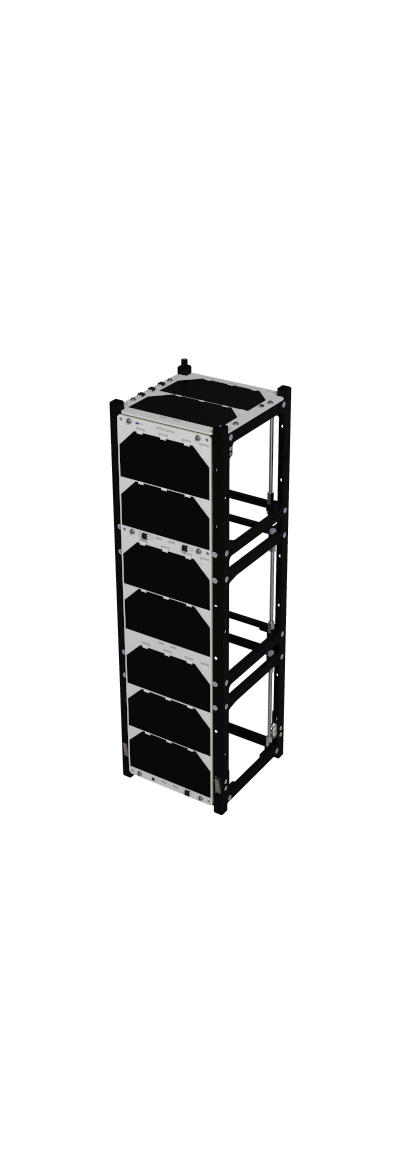

CORE-03
3U Cubesat Solar panel
- Peak Power: 8.54 W
- OC Voltage options: 5.2 / 7.8 / 16.4 V
- Suggested for: 3U / 6U
- Side: Lateral
- Form Factor: 3U Lateral XY
- Mass: 118 g
- Protection: Dual redundant

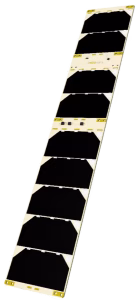

CORE-08
4U/8U Cubesat Solar panel
Peak Power: 11W
OC Voltage options: 5.2/7.8/10.4/23.4 V
Suggested for: 4U/8U
Side: Lateral
Form Factor: 1×4
Mass: 148 g
Protection: Dual redundant

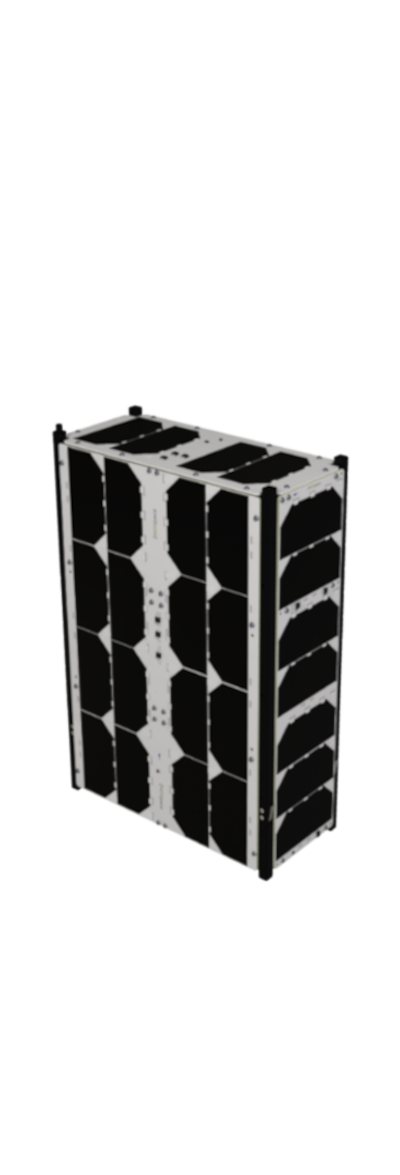

CORE-12
6U/12U Cubesat Solar panel
- Peak Power: 19.6W
- OC Voltage options: 10.4/20.8 V
- Suggested for: 6U/12U
- Side: Lateral
- Form Factor: 2×3
- Mass: 289 g
- Protection: Dual redundant

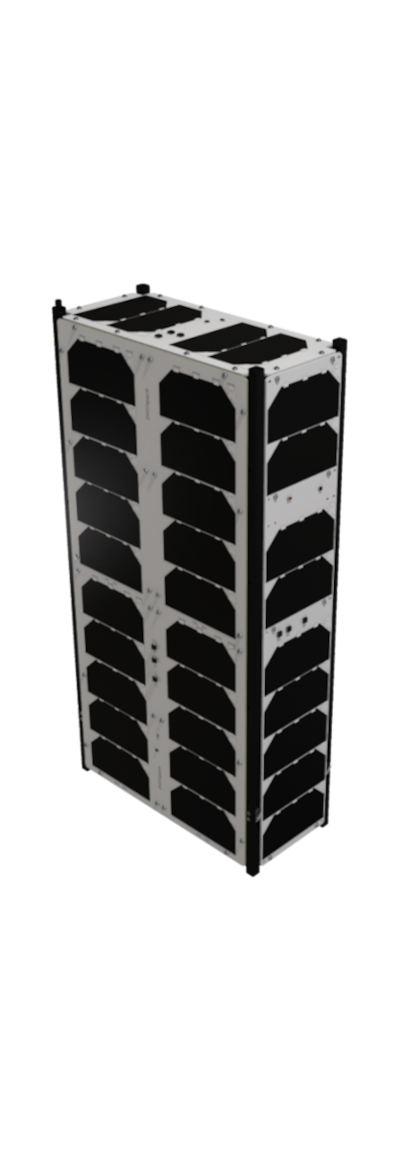

CORE-16
8U/16U Cubesat Solar panel
Peak Power: 24.4 W
OC Voltage options: 10.4/13.0/26.0 V
Suggested for: 8U/16U
Side: Lateral
Form Factor: 2×4
Mass: 380 g
Protection: Dual redundant

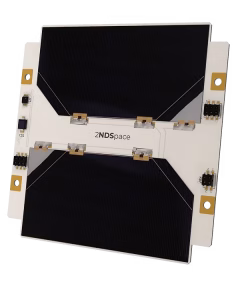

CORE-01Z
1U Cubesat Top Solar panel
Peak Power: 2.45 W
OC Voltage options: 5.2 V
Suggested for: 1U
Side: Top/Bottom
Form Factor: 1U Z
Mass: 38 g
Protection: Dual redundant
CORE-06Z
6U/8U Cubesat Top Solar panel
- Peak Power: 4.9 W
- OC Voltage options: 5.2/10.4 V
- Suggested for: 6U/8U
- Side: Top/Bottom
- Form Factor: 2×1
- Mass: 91 g
- Protection: Dual redundant

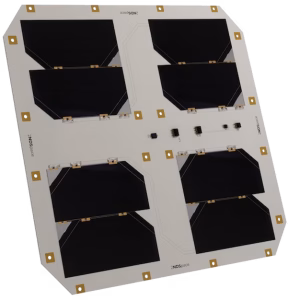

CORE-12Z
12U/16U Cubesat Top Solar panel
Peak Power: 9.76 W
OC Voltage options: 5.2/10.4/20.8 V
Suggested for: 12U/16U
Side: Top/Bottom
Form Factor: 4×4
Mass: 195 g
Protection: Dual redundant
